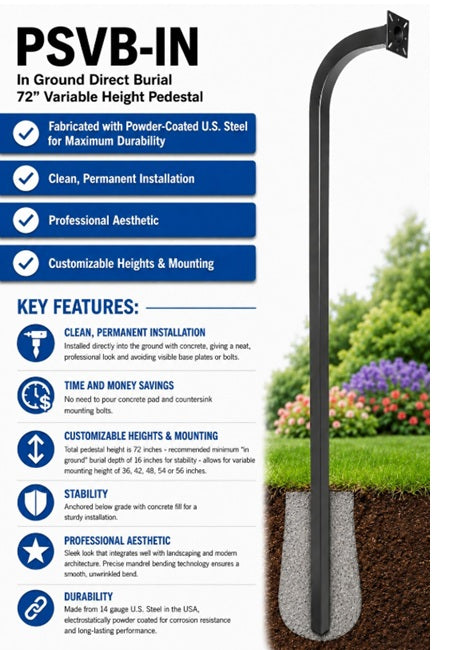

PSVB-IN 72 in. Direct Burial Variable Height Gooseneck Pedestal

The PSVB-IN is a 72 inch steel gooseneck pedestal that goes straight into the ground. There is no base plate or concrete pad to pour first. You set the burial depth to get the exposed height you need, which makes it easy to put a card reader or keypad at the right spot for drivers at a gate.

Key features

• Direct burial installation
• Variable exposed height of up to 56 inches above grade
• Gooseneck shape puts the reader within reach of the driver
• Steel construction with black powder coat for long outdoor use
• Suits gated communities, parking lots and utility sites

Specs

• Model: PSVB-IN
• Overall length: 72 in.
• Maximum exposed height: 56 in.
• Recommended minimum burial depth: 16 in.
• Finish: black powder coat

Before you order

Measure the window height of the vehicles you serve, then work out the burial depth, keeping at least 16 inches in the ground. Call your local utility locate service before digging. Plan the conduit run for reader power and data before the post goes in. Readers and housings are sold separately.
