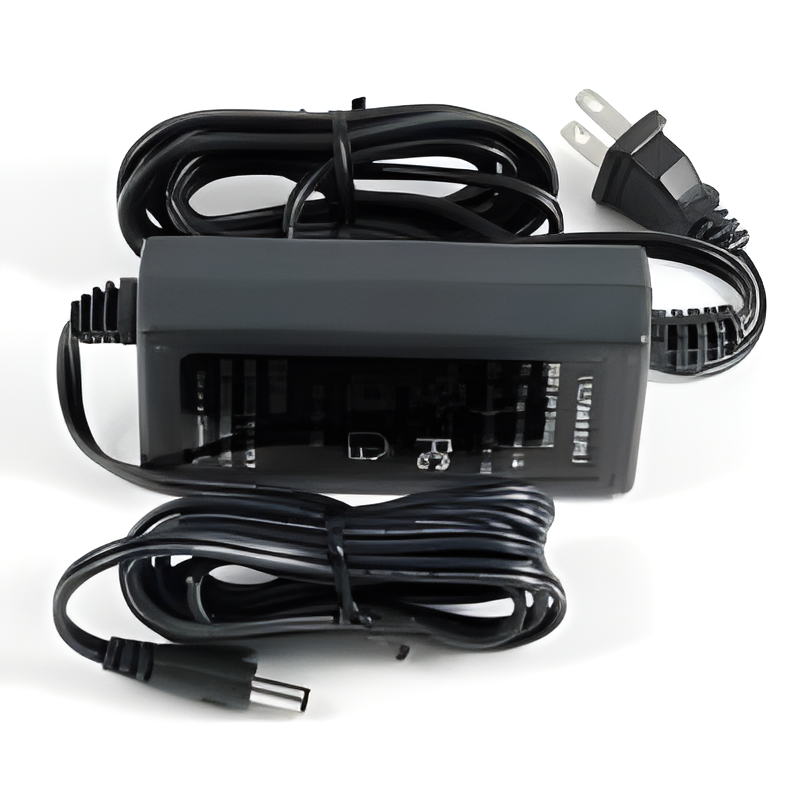

PS-1233A Switching Power supply for LR-911 and LR-2000 readers

A 12VDC, 3.3A switching power supply made to run LR-911 and LR-2000 readers.

Key features

• Low cost and easy to set up
• Meets ROHS
• Wide input range from 100VAC to 240VAC
• Efficiency of 80% at full load

Specifications

• Model: PS-1233A, 12VDC 3.3A
• Input voltage range: 100VAC (-10%) to 240VAC (+10%)
• Input frequency range: 47 Hz to 63 Hz
• Output voltage: +12VDC, regulated 11.4V to 12.6V
• Output load range: 0 to 3.3A
• Dimensions without cable: 4 1/4" x 2" x 1 1/4"
• Operation temperature: 0 °C to 40 °C

Before you order

Make sure the readers you power draw less than 3.3A in total.
