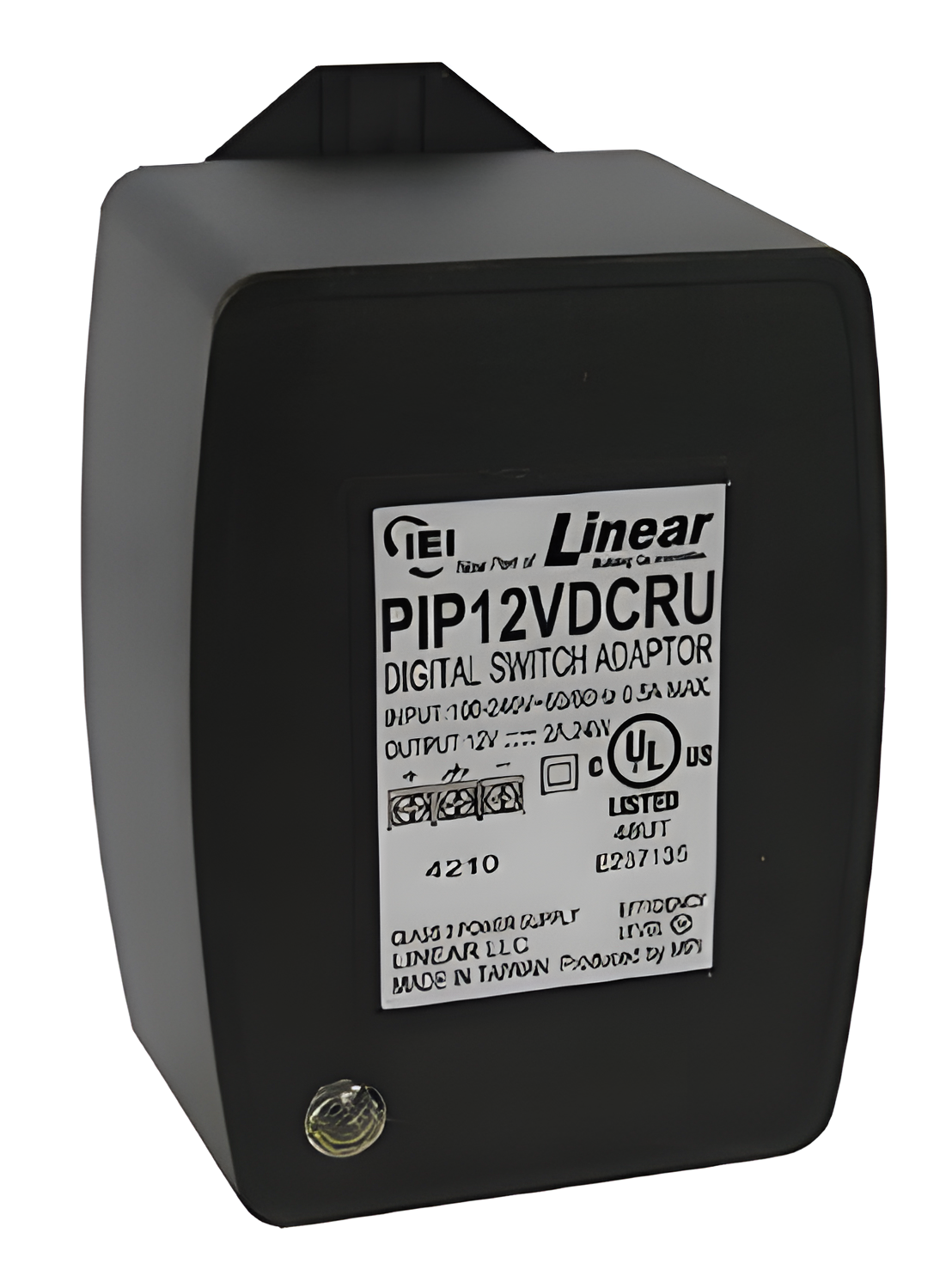

Linear IEI 12VDC 2A Plug-In Linear Power Supply, Grounded / Fused

A plug-in 12VDC, 2A power supply for HID and other brand access control readers, CCTV and security gear. It takes the place of a separate transformer, power board and cabinet.

Key features

• Output regulated at ±1% from 0% to 100% load, so it suits both light and heavy loads
• Poly-fuse resets itself after a short circuit
• Ground prong on the AC input and a ground output terminal
• Surge protection on the input side
• Red LED power indicator
• Plugs straight into an AC outlet, with a knockout for a wall outlet retaining screw
• Meets EISA 2007 with less than 1/2-watt standby power

Specifications

• Part number: PS-2420UL (Linear, formerly IEI)
• Input: 120VAC, 60 Hz, 3-pin grounded
• Output: 12VDC 2A, 24W, 3 screw terminals, grounded
• Size: 2.25 in. wide x 3.5 in high
• Class II power supply

Before you order

Add up the current of everything you plan to power and keep the total under 2A. Check that your reader or lock runs on 12VDC. This unit needs a standard 120VAC outlet.
