ICMS Internal Component Mounting Plate for PCH Housings

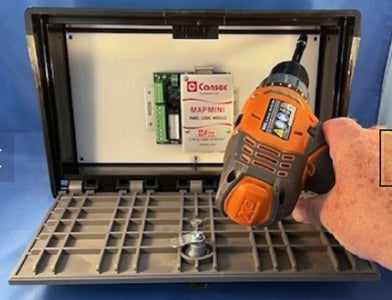

The ICMS is a pre-drilled backplate that fits inside PCH series housings. It lines up with the molded mounting bosses, so you can screw it in place and mount access control boards, card readers and other low voltage parts on it. Installers can stage the parts on the plate before going to site.

Key features

• Holes pre-drilled to match the bosses inside PCH housings
• HDPE plastic will not block RFID, Wiegand extenders or wireless signals
• Easy to drill with common hand tools for your own hole pattern
• Holds parts firmly and reduces vibration wear
• Keeps wiring and components neat inside the housing
• Self-tapping hex washer head screws (#6 x 1/2 in.) included

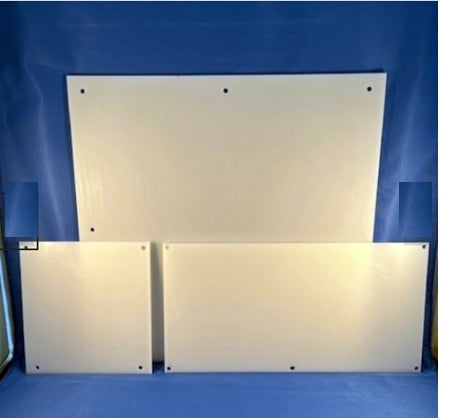

Models

• ICMS-049: 7 x 7 in., fits PCH049
• ICMS-091: 7 x 13 in., fits PCH091
• ICMS-196: 14 x 14 in., fits PCH196

Before you order

Choose the model that matches your housing part number. The plates are sized to the PCH bosses and will not fit other enclosures without modification. Check that your components fit the plate area with room for wiring and cable glands.
