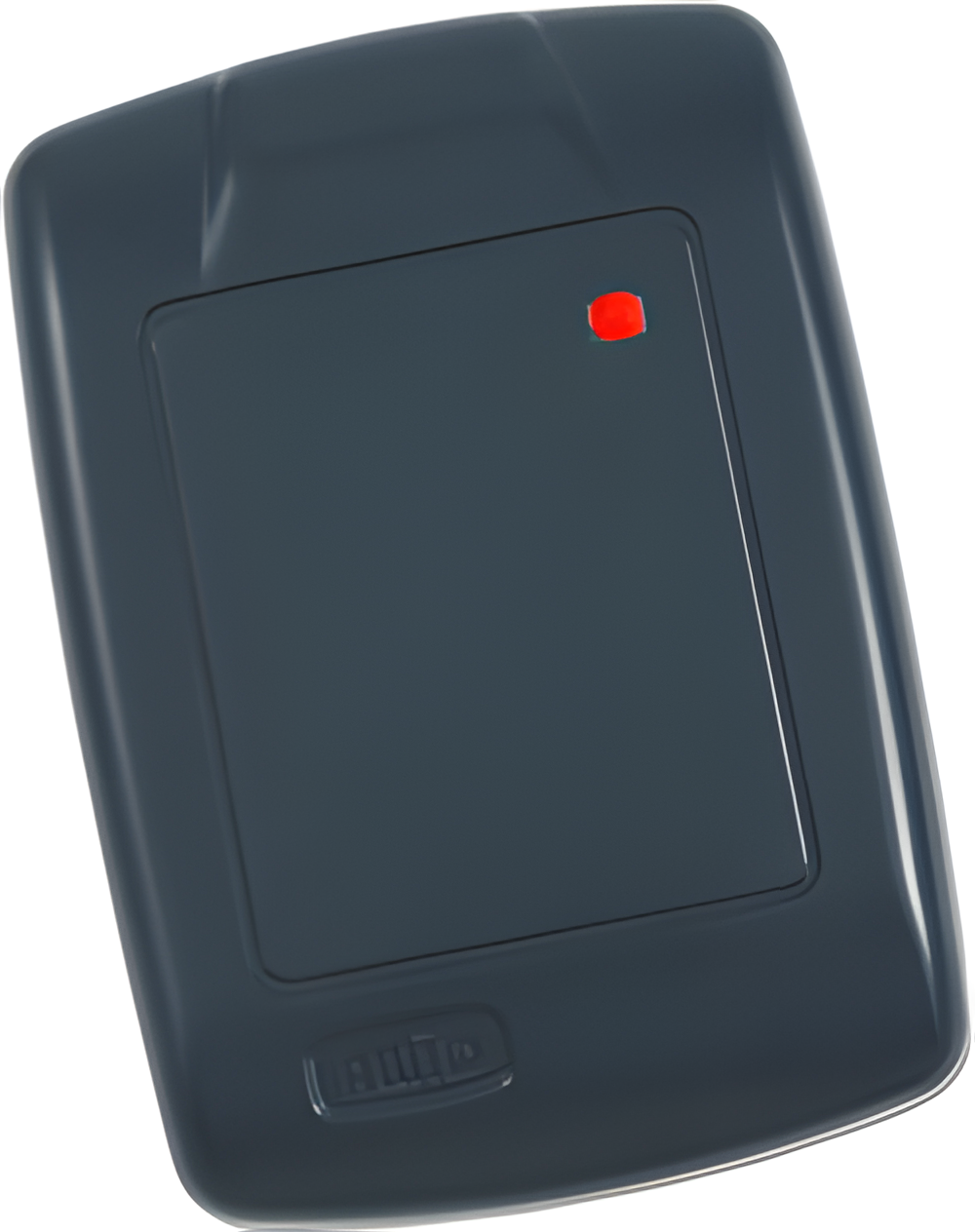

AWID UA-612 UHF Proximity Reader

The UA-612 UHF reader is the link for physical access of people at doors inside and
outside a building, and vehicle access at gates, using the same cards.  The UA-612 reader reads the same UHF hand-held cards that drivers use for vehicle
identification and gate control at a parking facility.  These cards are fully compatible
with AWID's LR-2000 and LR-2000HiLoMA long-range readers.
The driver inside the vehicle presents a card by hand toward the long range reader for gate control, and later presents the same card to the UA-612 for
door access in the building.

With its simultaneous Wiegand and RS-232 data output, the UA-612 reader can be interfaced for a wide variety of access
control, specialized system control, and
cardholder identifications applications.

Reading Distance: On wall or metal - up to 6 inches
Frequency Band: 902 to 928 MHz (in USA)
Frequency-hopping technology
Antenna Output: Circular-polarized RF field
Power Supply: 12 volts DC plus-or-minus 10%, Rated for 1.0 ampere or more - Linear if possible; regulated

Compatible cards and its maximum reading range:

• CS-UHF-0-0 Clamshell non-printable card - up to 12 inches (0.30 mts)
• GR-UHF ISO Printable card - up to 6 inches (0.15 mts)
